Sheet & Plate
Sheets & Plates
We offer wide variety of industrial steel sheets, industrial steel plates, industrial
stainless steel sheets, industrial stainless steel plates, which are fabricated from
finest
quality of raw materials. Manufactured as per the international quality and safety
standards, we offer these products in different dimensions and at highly competitive
prices.
These products are mostly applied in construction and engineering industry.
User Industries:
Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship
Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in
terms
of the specific materials, Technology, Finance & Personal.
Stainless & Duplex Steel
RANGE: 0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s.
Stainless Steel: ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430
Duplex Steel: ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon & Alloy Steel
RANGE: 1 mm to 150 mm and above
Standard : ASTM 516 Gr.70, IS 2062; ASTM A 387 Gr. 11, Gr. 12, Gr. 22, Gr. 5 Cl. 2; M2, M3, M35, M42
Forms: Foils; shim sheet; perforated sheet; chequered plate; strip; flats; blank (circle); ring (flange)
Finishing: HR, CR, CRCA.

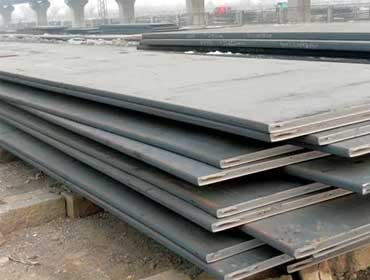

Mild Steel (MS)
RANGE: 0.5 mm to 200 mm thickness (Widths up to 2500mm, Lengths up to 12000mm)
Standard / Grades: IS 2062 (E250A, E250B, E250C, E350); ASTM A36, ASTM A283; EN 10025 (S235JR, S275JR, S355JR); DIN 17100 (St37.2, St44.2, St52.3); JIS G3101 SS400
Forms: Sheet; heavy plate; chequered plate (tear drop / diamond); shim sheet; perforated sheet; strip; flats; blank (circle); ring (flange)
Finishing: Hot Rolled (HR), Cold Rolled (CR), CRCA, Galvanized (GI), Pre-painted.
MS Sheet & Plate Weight Chart
Standard thicknesses and theoretical weights based on a density of 7.85 g/cm³.
Mild Steel Sheets (CRCA / HR) - 0.5mm to 3.15mm
| Thickness (mm) | Standard Widths (mm) | Weight per Sq. Meter (kg/m²) | Weight per 2500 x 1250 mm Sheet (kg) |
|---|---|---|---|
| 0.5 | 1000 / 1250 | 3.93 | 12.27 |
| 0.8 | 1000 / 1250 | 6.28 | 19.63 |
| 1.0 | 1000 / 1250 / 1500 | 7.85 | 24.53 |
| 1.2 | 1000 / 1250 / 1500 | 9.42 | 29.44 |
| 1.5 | 1250 / 1500 | 11.78 | 36.80 |
| 2.0 | 1250 / 1500 | 15.70 | 49.06 |
| 2.5 | 1250 / 1500 | 19.63 | 61.33 |
| 3.0 | 1250 / 1500 | 23.55 | 73.60 |
Mild Steel Heavy Plates (HR) - 4mm to 50mm
| Thickness (mm) | Standard Widths (mm) | Weight per Sq. Meter (kg/m²) | Weight per 2500 x 1250 mm Plate (kg) |
|---|---|---|---|
| 4.0 | 1250 / 1500 / 2000 | 31.40 | 98.13 |
| 5.0 | 1250 / 1500 / 2000 | 39.25 | 122.66 |
| 6.0 | 1250 / 1500 / 2000 | 47.10 | 147.19 |
| 8.0 | 1250 / 1500 / 2000 | 62.80 | 196.25 |
| 10.0 | 1500 / 2000 / 2500 | 78.50 | 245.31 |
| 12.0 | 1500 / 2000 / 2500 | 94.20 | 294.38 |
| 16.0 | 1500 / 2000 / 2500 | 125.60 | 392.50 |
| 20.0 | 1500 / 2000 / 2500 | 157.00 | 490.63 |
| 25.0 | 1500 / 2000 / 2500 | 196.25 | 613.28 |
| 32.0 | 1500 / 2000 / 2500 | 251.20 | 785.00 |
| 40.0 | 2000 / 2500 | 314.00 | 981.25 |
| 50.0 | 2000 / 2500 | 392.50 | 1226.56 |
Nickel & Copper Alloy
RANGE: 5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.
Nickel Alloy
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Hastelloy
Grades: Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Form:- Hastelloy Sheet
- Hastelloy Coil
- Hastelloy Strips
- Hastelloy Plates
- Hastelloy Circle
- Hastelloy Ring
Inconel
Grades: Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard: ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Incoloy
Grades: Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Type: Seamless / Erw / Welded/ Fabricated
Standard: ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
- Petrochemicals Plants
- Oil Refineries
- Sugar Mills
- Fertilizers Plants
- Chemical Plants
- Pharmaceuticals
- Textile Machinery
Monel
Grades: Monel 400, Monel k500
Type: Seamless / Erw / Welded/ Fabricated
Form: Round, Square, Rectangular, Hydraulic etc.
Length: Single Random, Double Random & Cut Length
End: Plain End, Beveled End, Threaded
