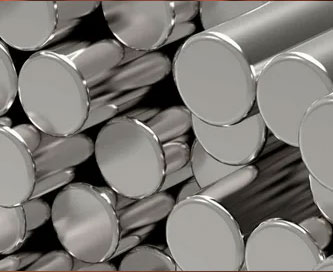

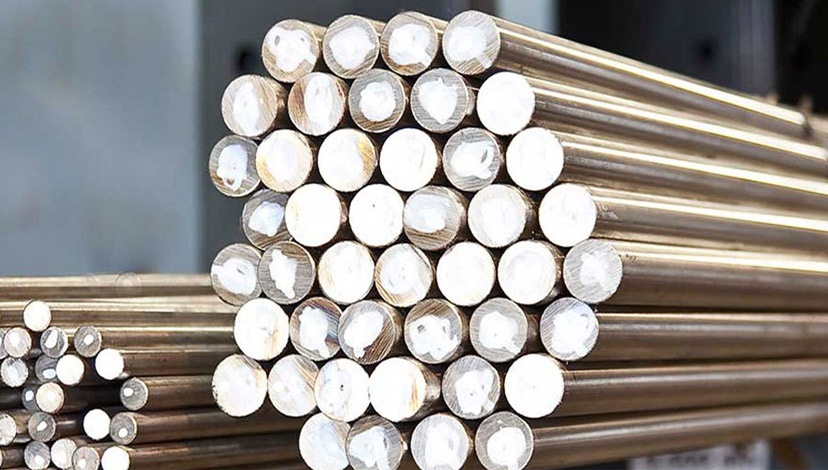

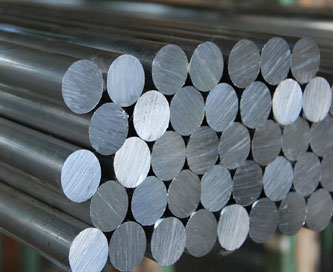

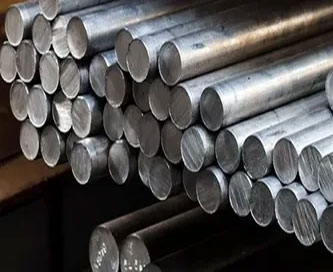

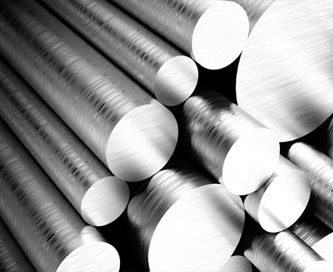

Round Bar
Round Bar
We are also stainless steel hex bar suppliers, which is readily available in stock in various grades and sizes. Stainless steel hex bar are long, hexagon shaped bar, it is flexible to use in different manufacturing application due to its corrosion resistance and high strength. It is used in the manufacturing of nuts, valves, hose ends, fasteners and bolts. Stainless Steel hex bar grades are 301, 302, 304, 310, 316, 321/321H, 347/347H etc.
Stainless Steel
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: 303, 304, 304L, 316, 316L, 316Ti, 310, 310S, 321, 317L, 347, 347H, 904L, 17 4PH, 15 5PH, 410, 420
Nickel Alloy
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: INCONEL 600, 601, 625, 718, 800, 800H, 800HT,825, 925. SMO 254, ALLOY 20(20CB3), MONEL 400, 500K, RA 330, HASTELLOY C-276, HASTELLOY B2, B3, TITANIUM Gr 1 to 5
Duplex/ Super Duplex
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: UNS S31803 (F51), UNS S2205 (F60), UNS S32750 (F53), UNS S32760 (F55)
Alloy Steel
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: SAE 1018, SAE 8620, SAE 1010, EN Serise, C45, EN 42 J

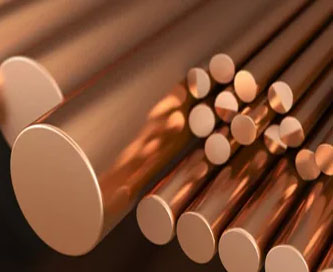

Copper Nickel
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: Copper Nickel 90/10 and Copper Nickel 70/30
Mild Steel (MS) Angle, Channel & Beam
RANGE:
Angles: 20x20x3 mm to 200x200x25 mm
Channels: 75x40 mm to 400x100 mm
Beams: 100x50 mm to 600x210 mm and above
Length: Standard 6 Meters to 12 Meters
Standard / Grades : IS 2062 (Grade E250A, E250BR, E350); ASTM A36; EN 10025 (S275JR, S355JR); JIS G3101 SS400
Forms / Types: Equal & Unequal Angles (ISA); C-Channels (ISMC, UPN, UPE); I-Beams (ISMB, IPE); H-Beams / Columns (HEA, HEB, UC, UB)
Finishing: Hot Rolled (Black), Hot Dip Galvanized (HDG), Red Oxide Primer Painted.
Standard Dimensions & Weights
Comprehensive reference chart for MS Angles, Channels, and Beams (IS Standards).
MS Equal Angles (ISA)
| Size (A x B) in mm | Thickness (t) in mm | Section Weight (kg/m) | Section Weight (kg/foot) |
|---|---|---|---|
| 25 x 25 | 3.0 | 1.10 | 0.33 |
| 35 x 35 | 5.0 | 2.60 | 0.79 |
| 50 x 50 | 5.0 | 3.80 | 1.15 |
| 65 x 65 | 6.0 | 5.80 | 1.76 |
| 75 x 75 | 6.0 | 6.80 | 2.07 |
| 100 x 100 | 8.0 | 12.10 | 3.68 |
| 150 x 150 | 10.0 | 22.80 | 6.94 |
| 200 x 200 | 12.0 | 36.60 | 11.15 |
MS Channels (ISMC)
| Designation | Size (Depth x Flange) mm | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|
| ISMC 75 | 75 x 40 | 4.8 | 7.5 | 7.14 |
| ISMC 100 | 100 x 50 | 5.0 | 7.5 | 9.56 |
| ISMC 150 | 150 x 75 | 5.4 | 9.0 | 16.80 |
| ISMC 200 | 200 x 75 | 6.1 | 11.4 | 22.30 |
| ISMC 250 | 250 x 80 | 7.1 | 14.1 | 30.40 |
| ISMC 300 | 300 x 90 | 7.6 | 13.6 | 35.80 |
| ISMC 400 | 400 x 100 | 8.6 | 15.3 | 49.40 |
MS Beams / Joists (ISMB)
| Designation | Size (Depth x Flange) mm | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|
| ISMB 150 | 150 x 80 | 4.8 | 7.6 | 14.90 |
| ISMB 200 | 200 x 100 | 5.7 | 10.8 | 25.40 |
| ISMB 250 | 250 x 125 | 6.9 | 12.5 | 37.30 |
| ISMB 300 | 300 x 140 | 7.5 | 12.4 | 44.20 |
| ISMB 400 | 400 x 140 | 8.9 | 16.0 | 61.60 |
| ISMB 500 | 500 x 180 | 10.2 | 17.2 | 86.90 |
| ISMB 600 | 600 x 210 | 12.0 | 20.8 | 122.60 |
